The Mount Arthur Coal Mine, located in the Hunter Valley, NSW, is the state’s largest energy coal mine and has been operating since the 1960s.

As part of its 2023 site renovation, Revision Zero successfully delivered the CHPP Guards — a project requiring precision, collaboration, and the smart use of technology.

🔍 Our Approach:

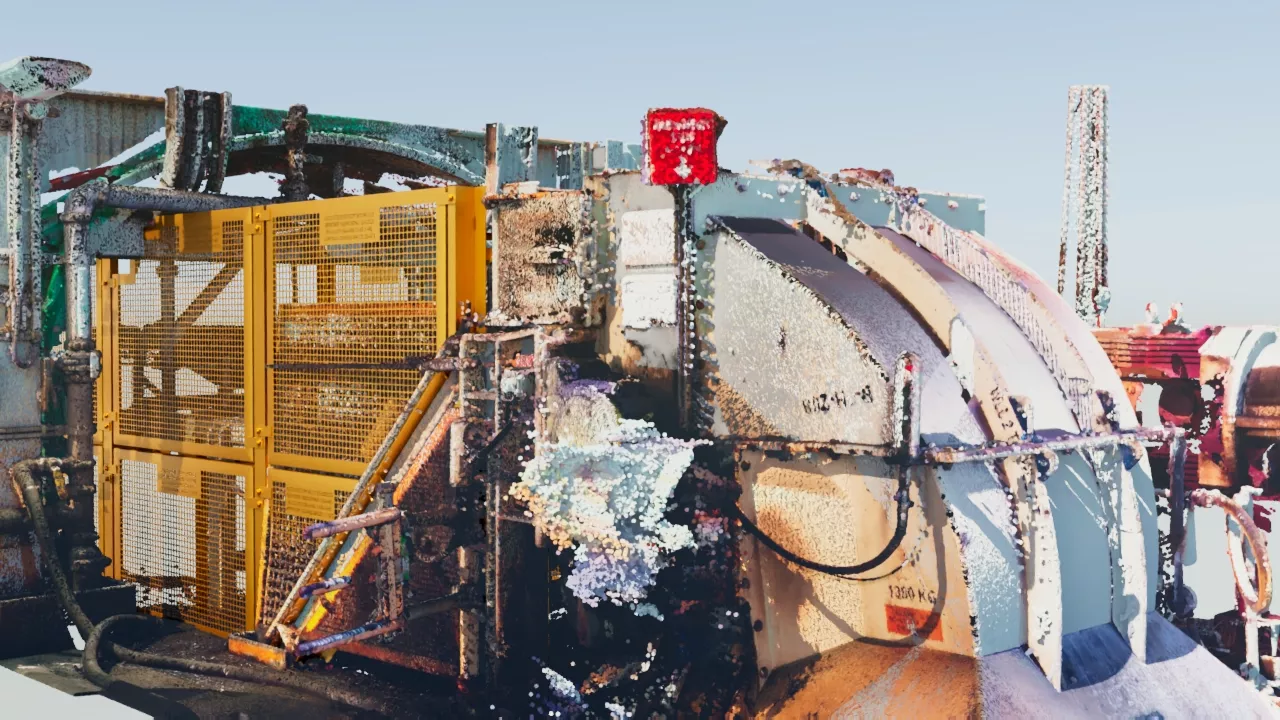

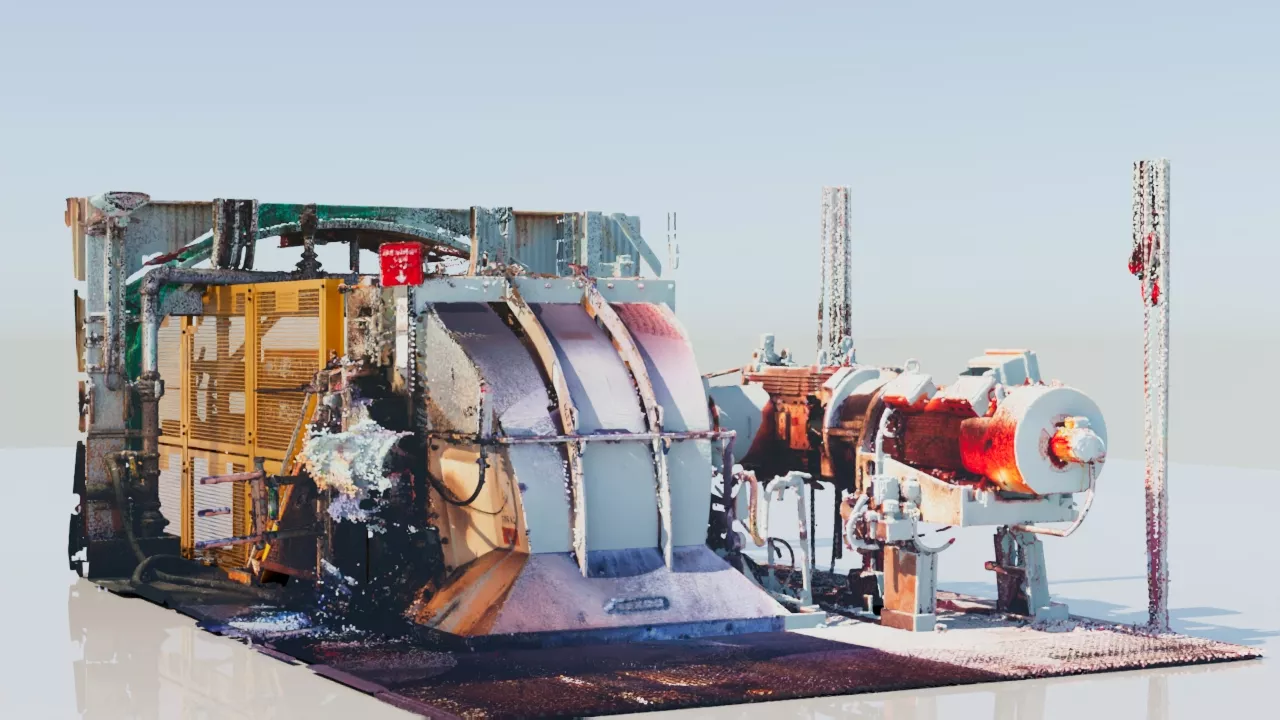

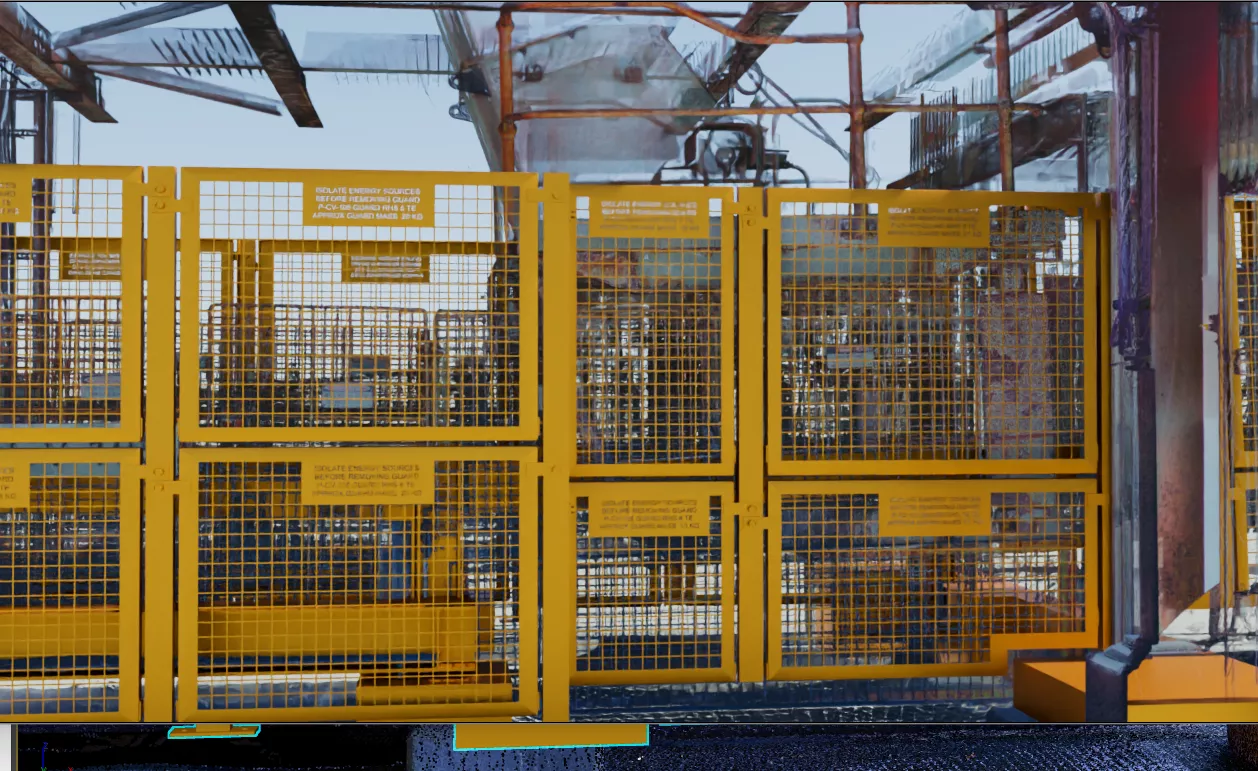

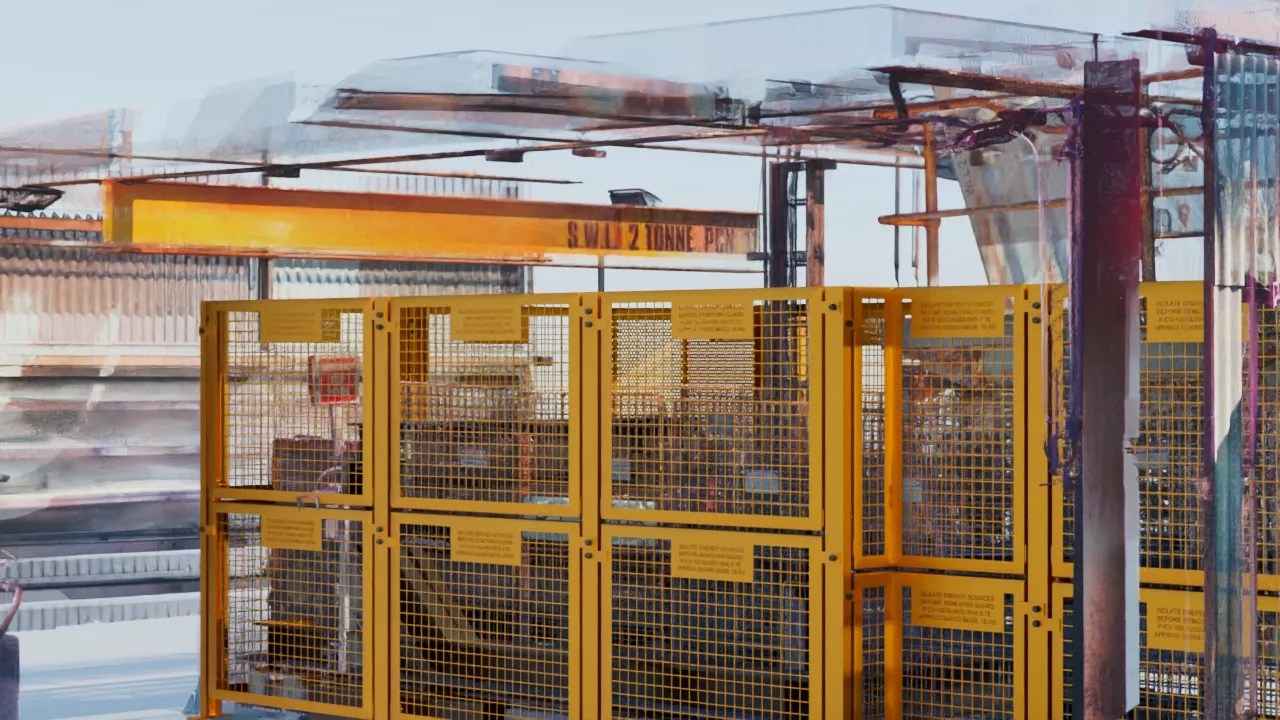

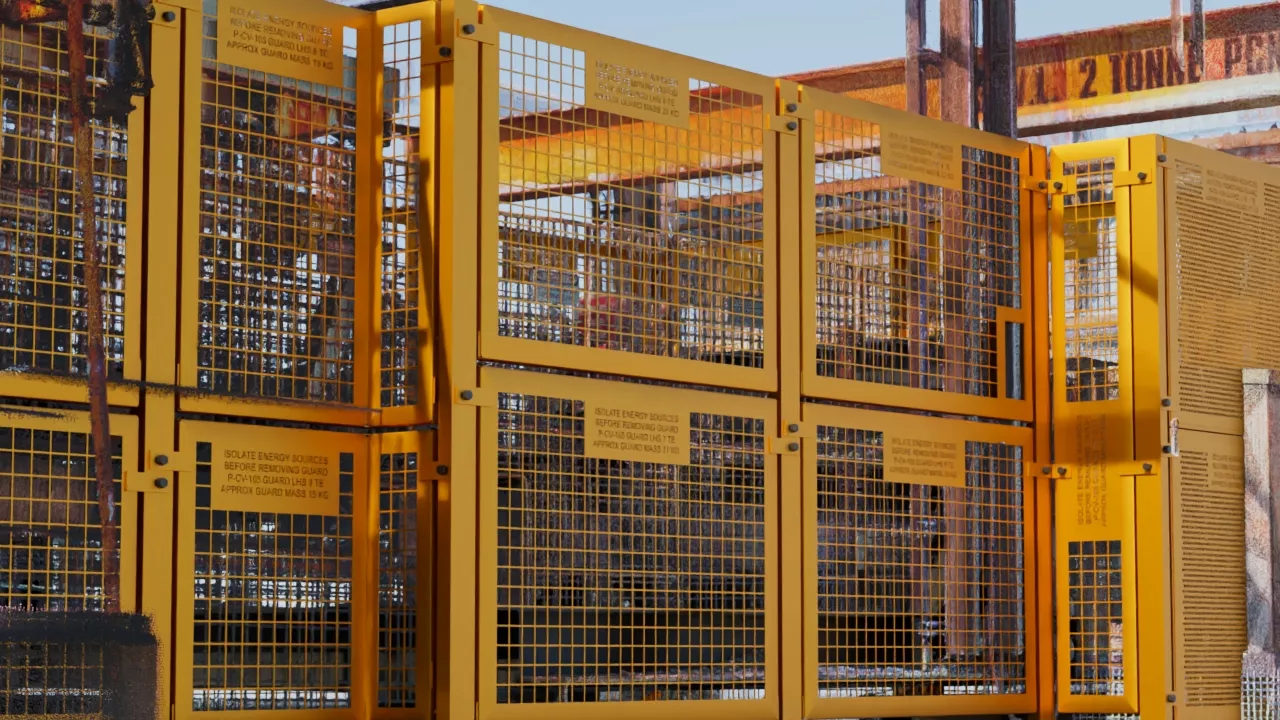

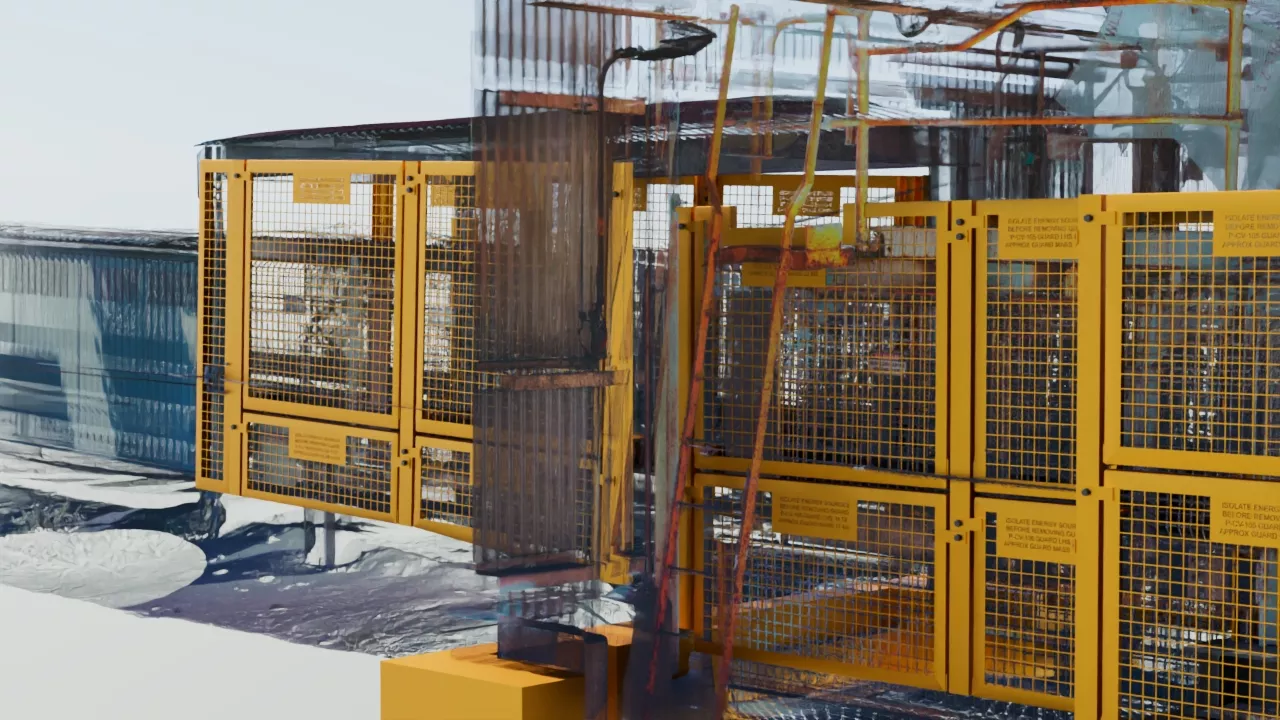

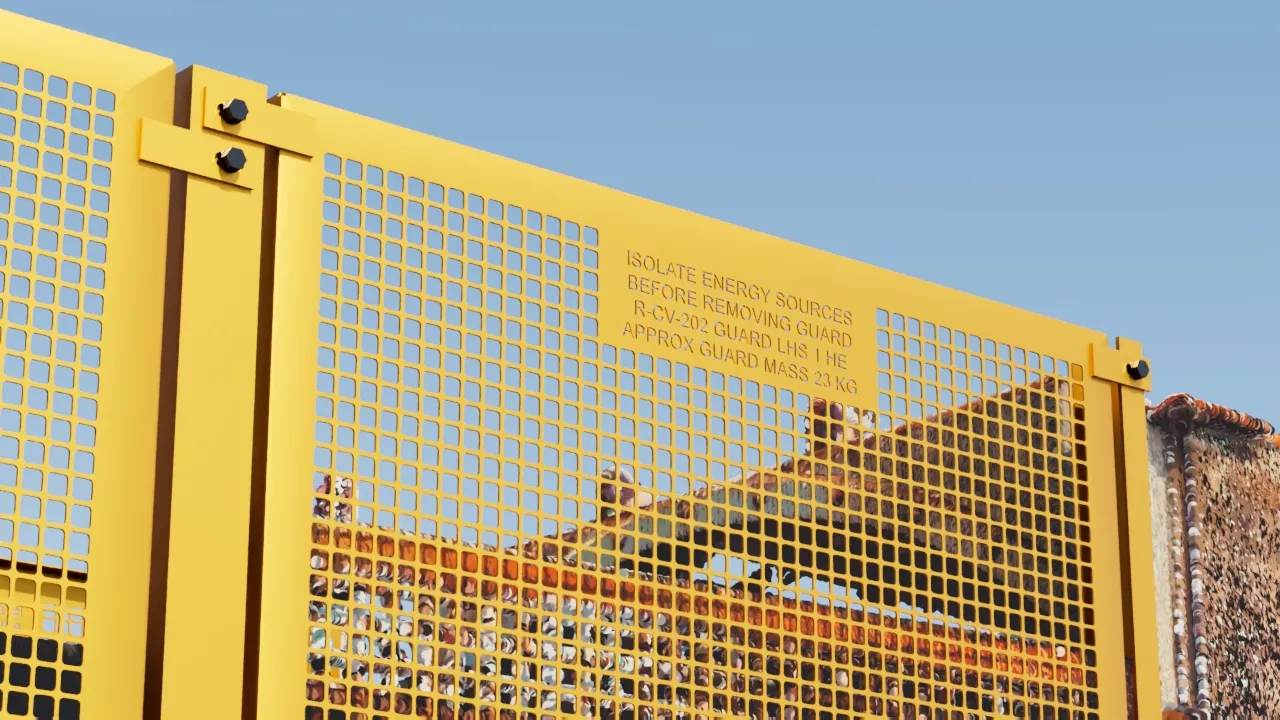

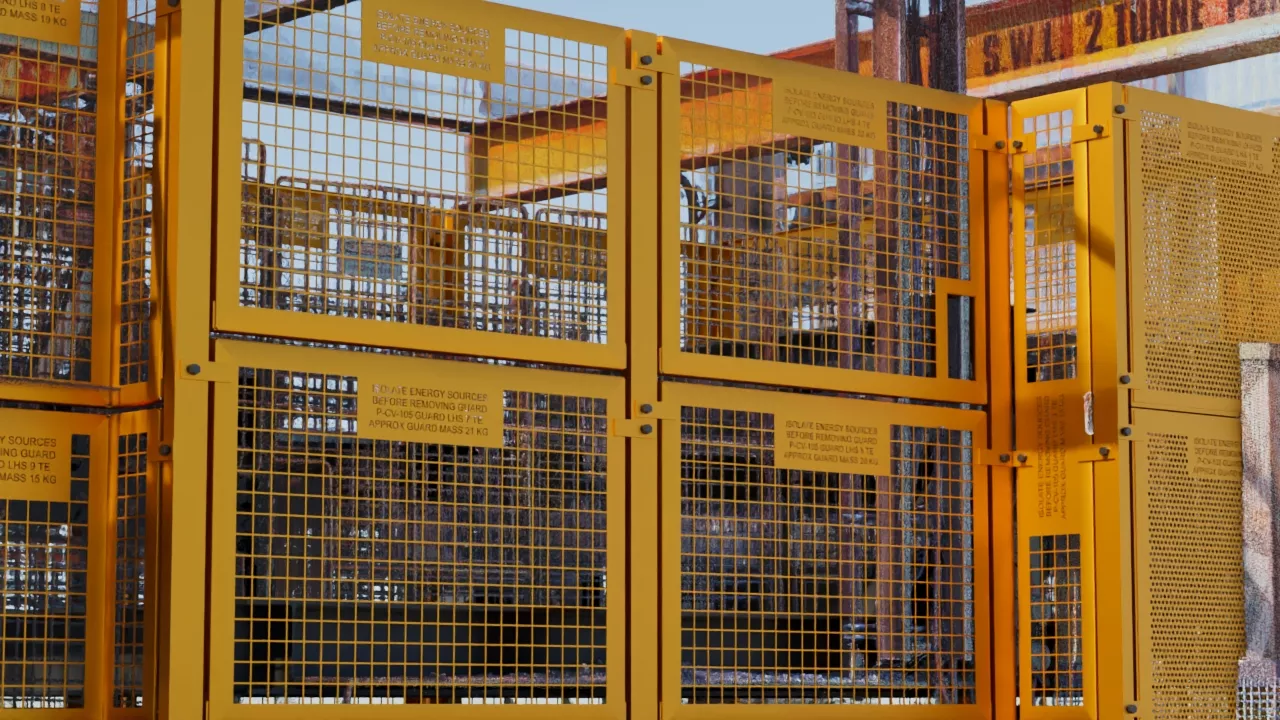

We began by scanning the existing conveyors and mechanical works, producing a detailed point cloud model. This was imported into Tekla, enabling us to design the replacement screens and supporting steelwork with exceptional accuracy.

⚙️ The Outcome:

This digital-first workflow ensured our new designs matched existing structures without clashes, making fabrication and site installation seamless. The result?

✅ Faster installation
✅ Reduced risk of costly rework
✅ A smoother experience for fabricators and site crews

Another successful project that highlights our commitment to innovation, quality, and practical solutions for our clients.
